Double Section Wall Mount Cabinet (Flat Packing]
TN-006B
Retail price
Price
重量
Stock
隐藏域元素占位
- Product Description
-
- Commodity name: Double Section Wall Mount Cabinet (Flat Packing]
- Commodity ID: B-005-1
- Model NO.: TN-006B
Product Description：
* Two Section/ Double Section Wall Mount Cabinet
* Can be Disassembled, Flat Packing, Save the Shipping Cost.
* Standing or wall mounting installation
* Adjustable feet and heavy duty castors are optional
* Easy mounting installation
* Removable side panels, side locks optional
* Cable entry on both of top cover and bottom panel
* 120mm fan available (220V or 110V)
* Turning angle of front door is over 180 degrees.
standard：

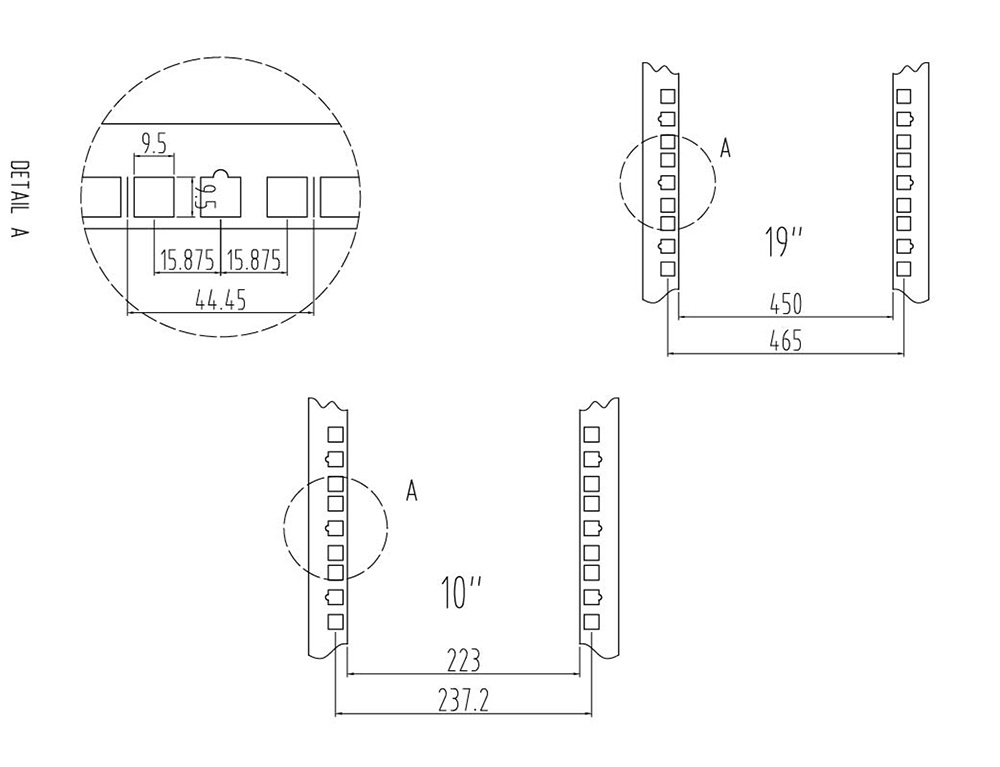

Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494;
PART1, DIN41494; PART7, ETSI standard
Material：
High grade cold rolled steel.
Thickness：
Mounting profile: 1.50mm others: 1.2mm
Surface finish：
Degrease, acid pickling, rust prevention and Parkerizing,
pure water cleaning, static electricity plastic painting.
Body Color：
RAL7035, RAL9004 etc.

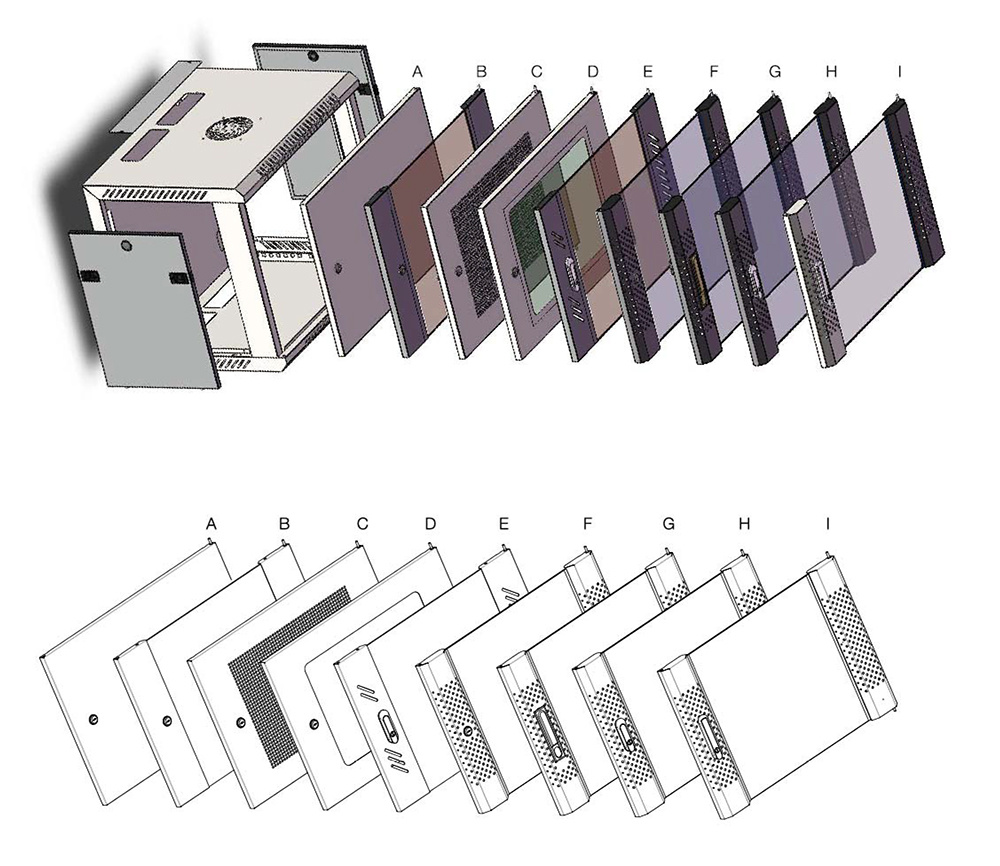

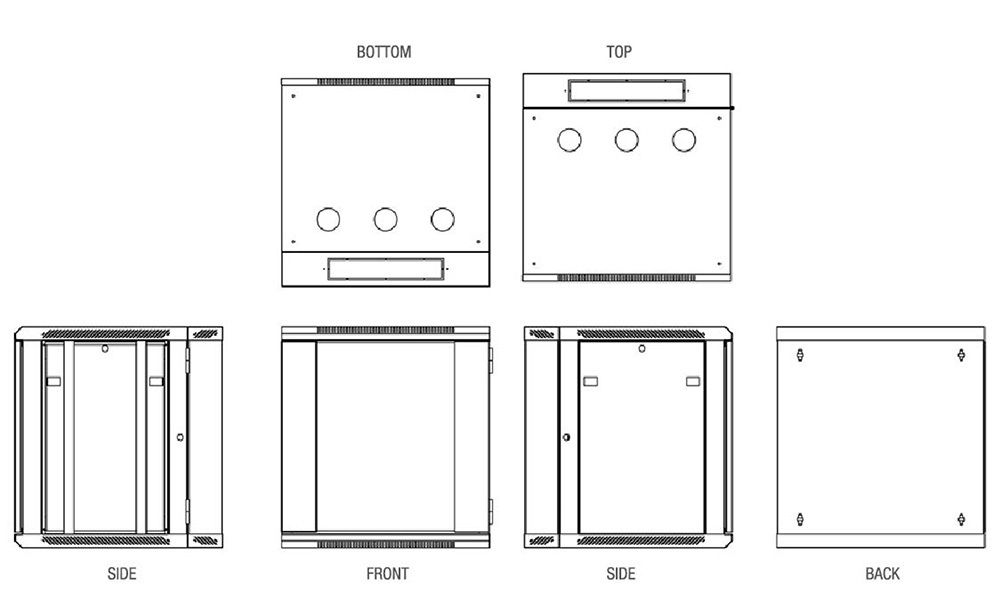

MULTI-VIEW
Standard Size Of Wall Mount Cabinet
MODE NO. CAPACITY WIDTH(MM) DEPTH(MM) HEIGHT(MM) PACKING DIMENSION COLUME(CBM) W/M D/M H/M TN-006-6506 6U 600 550 368 0.62 0.57 0.39 0.1378 TN-006-6606 600 600 0.62 0.62 0.39 0.1499 TN-006-6509 9U 600 550 501 0.62 0.57 0.52 0.1838 TN-006-6609 600 600 0.62 0.62 0.52 0.1999 TN-006-6512 12U 600 550 635 0.62 0.57 0.66 0.2332 TN-006-6612 600 600 0.62 0.62 0.66 0.2537 TN-006-6515 15U 600 550 769 0.62 0.57 0.79 0.2792 TN-006-6615 600 600 0.62 0.62 0.79 0.3037 TN-006-6518 18U 600 550 901 0.62 0.57 0.92 0.3251 TN-006-6618 600 600 0.62 0.62 0.92 0.3536 TN-006-6522 22U 600 550 1082 0.62 0.57 1.1 0.3887 TN-006-6622 600 600 0.62 0.62 1.1 0.4228 TN-006-6527 27U 600 550 1304 0.62 0.57 1.32 0.4665 TN-006-6627 600 600 0.62 0.62 1.32 0.5074
