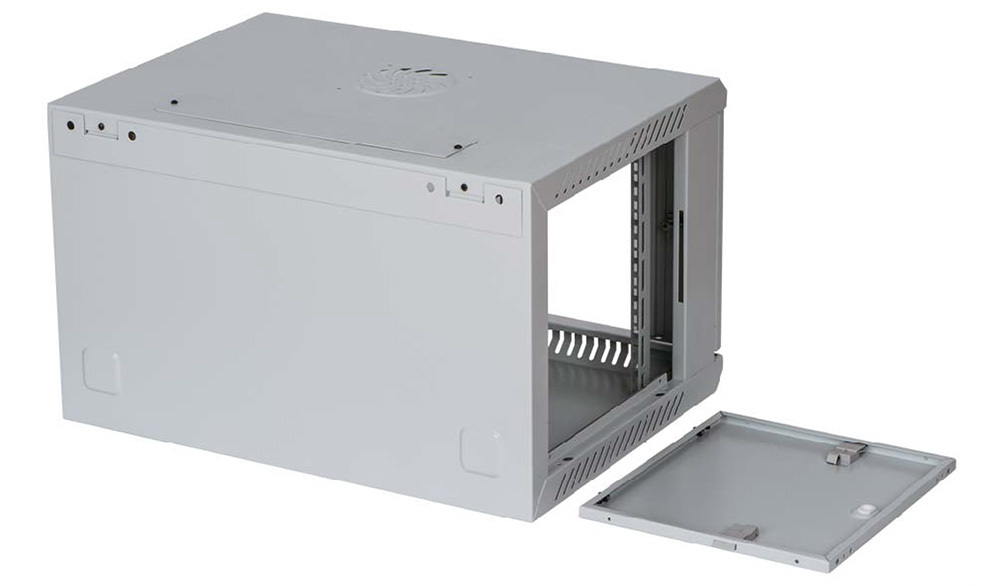

SINGLE SECTION WALL MOUNT CABINET
TN-007
Retail price
Price
重量
Stock
隐藏域元素占位
- Product Description
-
- Commodity name: SINGLE SECTION WALL MOUNT CABINET
- Commodity ID: B-006
- Model NO.: TN-007
Product Descrmtlon：
* One Section/ Single Section Wall Mount Cabinet
* Welded frame, reliable structure
* Standing or wall mounting installation
* Adjustable feet and heavy duty castors are optional
* Removable side panels, side locks optional
* Cable entry on both of top cover and bottom panel
* 120mm fan available (220V or 110V)
* Turning angle of front door is over 180 degrees.
Standard：
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494;
PART1, DIN41494; PART7, ETSI standard
Material：
High grade cold rolled steel.
Thickness：
Mounting profile: 1.50mm others: 1.2mm
Surface finish：
Degrease, acid pickling, rust prevention and Parkerizing,
pure water cleaning, static electricity plastic painting Body
Color：
RAL7035, RAL7044, RAL9004 etc.
Standard Size Of Wall Mount Cabinet
MODE NO. CAPACITY WIDTH(MM DEPTH(MM) HEIGHT(MM) PACKING DIMENSION COLUME(CBM) W/M D/M H/M TN-007-6406 6U 600 450 368 0.62 0.47 0.39 0.1136 TN-007-6606 600 600 0.62 0.62 0.39 0.1499 TN-007-6409 9U 600 450 501 0.62 0.47 0.52 0.1515 TN-007-6609 600 600 0.62 0.62 0.52 0.1999 TN-007-6412 12U 600 450 635 0.62 0.47 0.66 0.1923 TN-007-6612 600 600 0.62 0.62 0.66 0.2537 TN-007-6415 15U 600 450 769 0.62 0.47 0.79 0.2302 TN-007-6615 600 600 0.62 0.62 0.79 0.3037 TN-007-6418 18U 600 450 901 0.62 0.47 0.92 0.2681 TN-007-6618 600 600 0.62 0.62 0.92 0.3536 TN-007-6422 22U 600 450 1082 0.62 0.47 1.1 0.3205 TN-007-6622 600 600 0.62 0.62 1.1 0.4228 TN-007-6427 27U 600 450 1304 0.62 0.47 1.32 0.3846 TN-007-6627 600 600 0.62 0.62 1.32 0.5074 Standard Size Of Economy Wall Mount Cabinet
MODE NO. CAFVKCITY WIDTH(MM) DEPTH(MM) HEIGHT(MM) PACKING DIMENSION COLUME(CBM) W/M D/M H/M TN-007-5406 6U 550 450 368 0.57 0.47 0.39 0.105 TN-007-5606 550 600 0.57 0.62 0.39 0.137 TN-007-5409 9U 550 450 501 0.57 0.47 0.52 0.14 TN-007-5609 550 600 0.57 0.62 0.52 0.184 TN-007-5412 12U 550 450 635 0.57 0.47 0.66 0.177 TN-007-5612 550 600 0.57 0.62 0.66 0.233 TN-007-5415 15U 550 450 769 0.57 0.47 0.79 0.212 TN-007-5615 550 600 0.57 0.62 0.79 0.28 TN-007-5418 18U 550 450 901 0.57 0.47 0.92 0.246 TN-007-5618 550 600 0.57 0.62 0.92 0.279 TN-007-5422 22U 550 450 1082 0.57 0.47 1.1 0.295 TN-007-5622 550 600 0.57 0.62 1.1 0.389 TN-007-5427 27U 550 450 1304 0.57 0.47 1.32 0.354 TN-007-5627 550 600 0.57 0.62 1.32 0.467
