- Commodity name: 10 inch wall mount cabinet
- Commodity ID: B-000
- Model NO.: 10-3304 Other model:10-3306,10-3309,10-3312.10-3315
· Model NO.: 10-3304

Other model:10-3306,10-3309,10-3312.10-3315

· Usage: Network Integration System

· Certification: CE, RoHS, GS

· Color: Ral7035, Ral9004, etc

· Packing Style: Assembled or dis-assembled

· Material: SPCC Cold Rolled Steel

· Trademark: TNE, OEM, ODM

· Specification: CE, RoHS

· HS Code: 8517709000

· Type: Network Cabinet

· Installation: 10” installation

· Capacity: 4u to 27u

· Condition: New

· Logo: Silk Print, Aluminum Sticker, Rubber Sticker

· Shipping: Sea, Air, Train, Truck

· Certificate: Ce. RoHS

· Transport Package: Carton

· Origin: Ningbo China

Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1, DIN41494; PART7, GB/T3047.2-92 and ETSI standard

Size

10-3304   310X280X4U

10-3306   310X280X6U

10-3309   310X280X9U

10-3312    310X280X12U

10-3315    310X280X15U

These models and U numbers are popular. We can also choose from different heights of 3U-18U according to customer requirements

Features

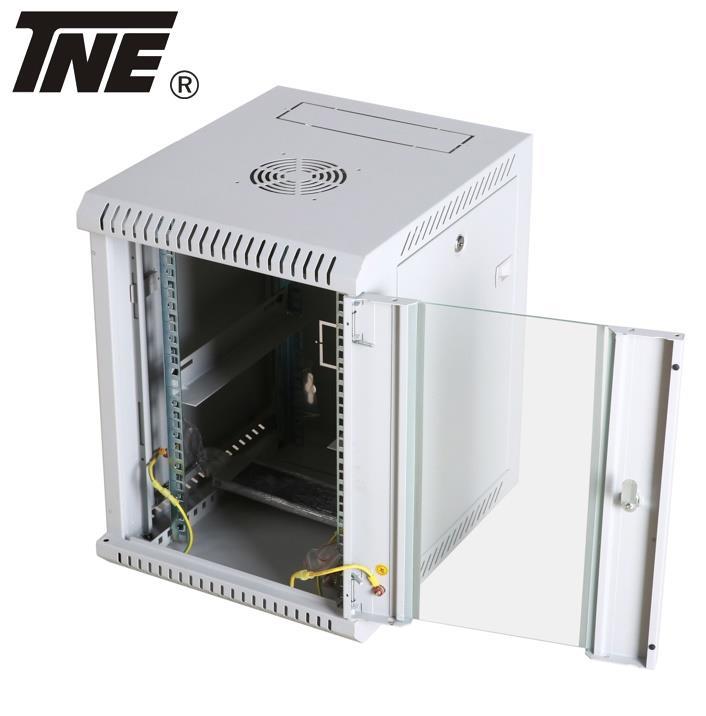

10" SOHO wall mounted cabinets

Feature

WB-MI35044NB is a cabinet is intended for installation CCTV devices and network distribution systems.

10" rack mountable,Mini structure - possible of max the load capacity up to 20KG.

Welding body SOHO cabinet.

Doors

Front smoky gray glass door - cylinder key lock.

Rear non full-covered solid metal panel (N/A).

Unremovable side panel with louver area.

Accessories

2× 1.50 mm Position-adjustable 10" mounting rail.

1× Earthing cable

10 sets of extra M6 caged screws.

Cable entrance

Top - 1 * 100×40mm cable entrance

Bottom - 1* 100×40mm cable entrance

Can ask for more...

Package

Assembled packing.

Webitelecomms neutral carton box packed

Plywood pallet for options

Usually size

Width: 300 , 350 mm

Depth: 250, 300, 350 mm

Height: 4U, 6U, 9U, 12U, 15U, 18U,OEM

Customized size is available

Industry Standard and Material:

Comply with

ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.

Surface Finish: Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating

Materials: SPCC cold rolled steel or EG steel

Thickness:

Mounting profile: 1.5mm

Body: 1.00mm

IP degree: IP-20

Loading capacity: Max Static loading---20 KG
